RevenueCat: subscriptions in Finance and Notifications

Connecting RevenueCat gives Appwin your app's subscription figures: MRR, revenue, churn, active subscribers, trials.

It is the source of almost all of the Finance product. Without it, the page stays empty and offers to connect the account.

Two complementary channels:

The webhook only covers what happens from now on. The S3 drop also brings the past.

Settings → Projects → your app → Integrations → RevenueCat.

1. Get all your purchases in real time

In Appwin, the RevenueCat card → Get all your purchases in real time shows the RevenueCat project ID, the webhook URL and a secret (whsec_… prefix). You paste the URL and secret into RevenueCat.

1. 1

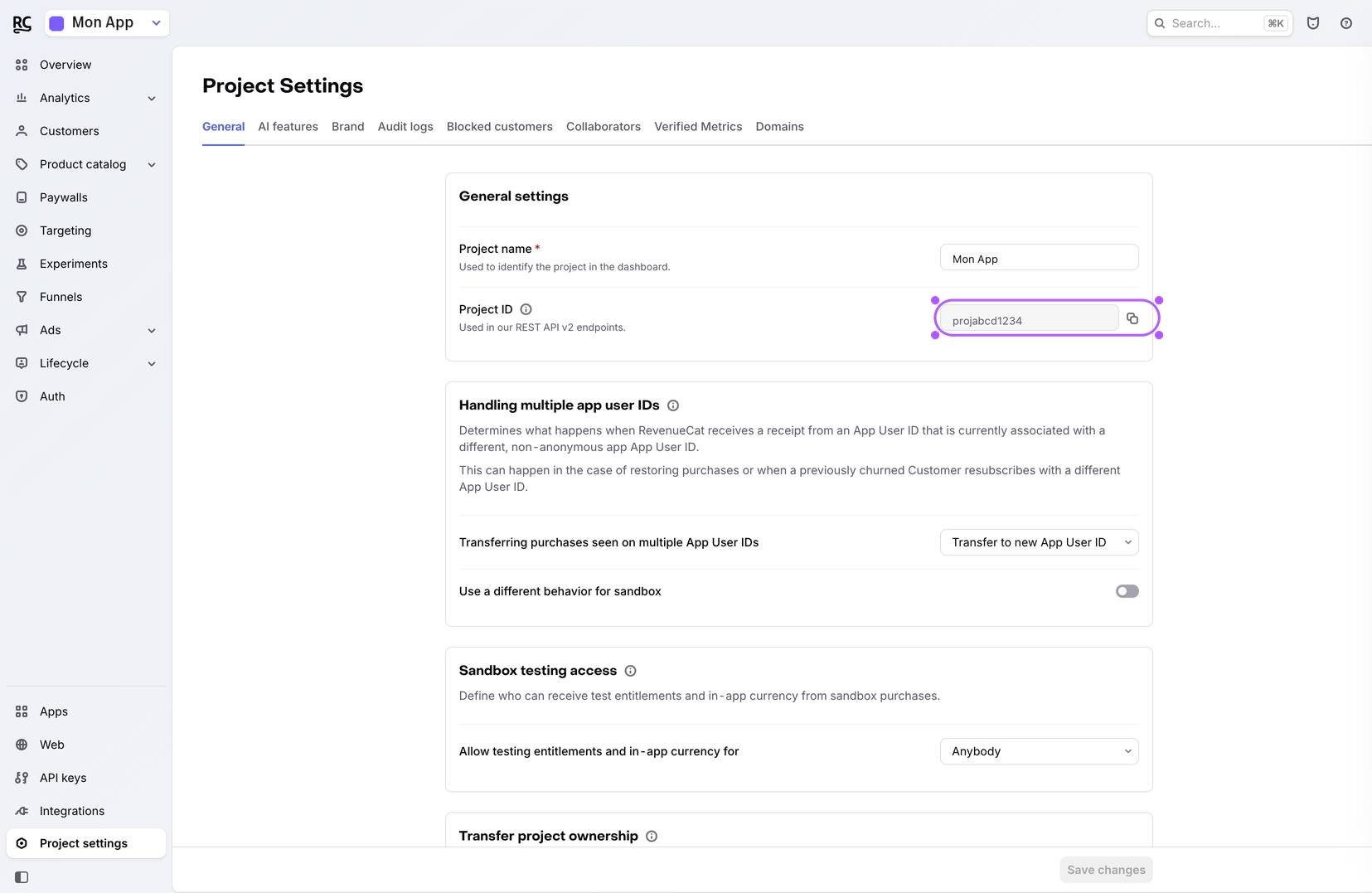

   Copy the Project ID

   Open RevenueCat, select your project, then Project settings → Project ID, and paste it into Appwin. It also appears in the RevenueCat URL: app.revenuecat.com/projects/<Project ID>/….



2. 2

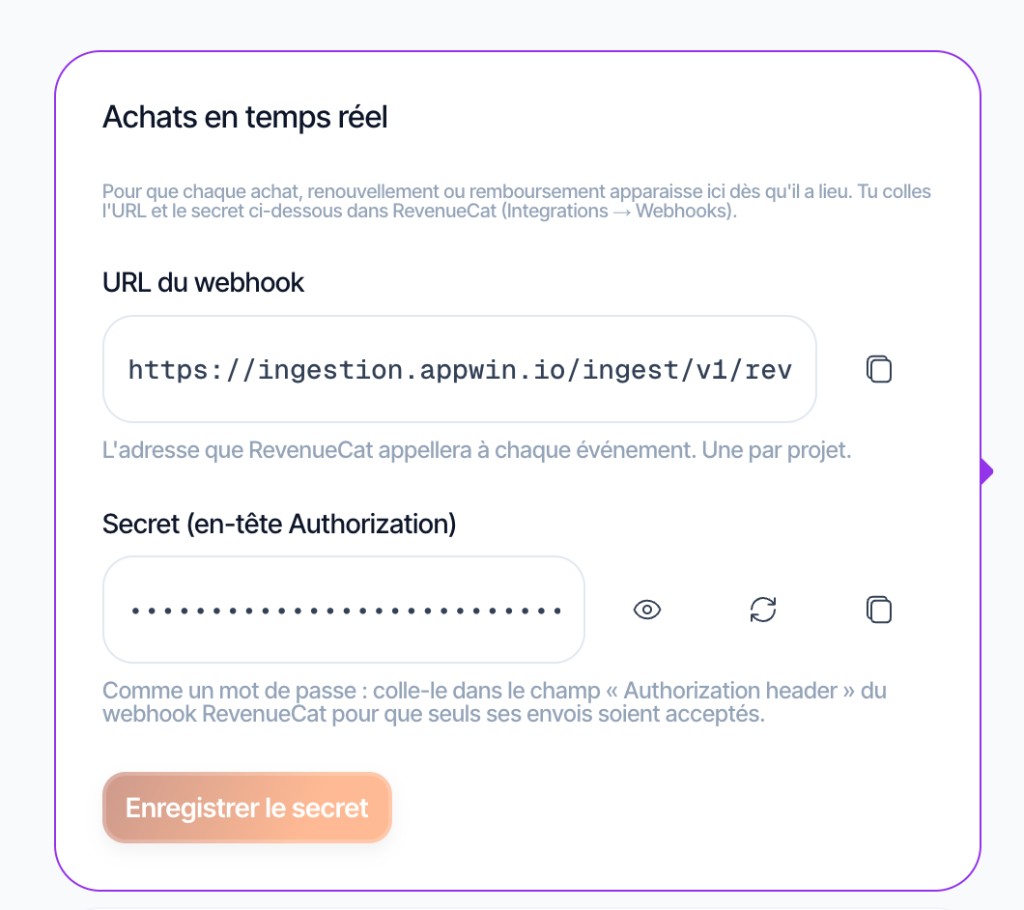

   Collect URL and secret in Appwin

   Generate the secret if needed, then copy the URL and secret from the card.



3. 3

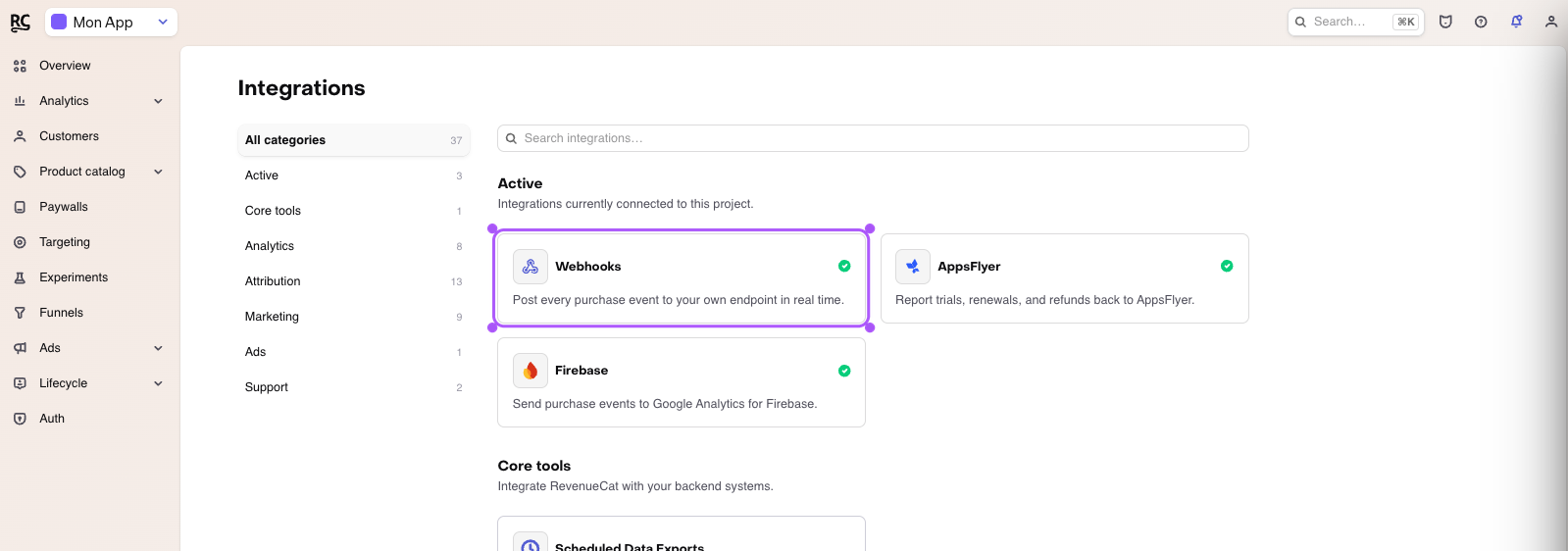

   Open Integrations → Webhooks

   Open RevenueCat, select your project, then Integrations, and click the Webhooks card.



4. 4

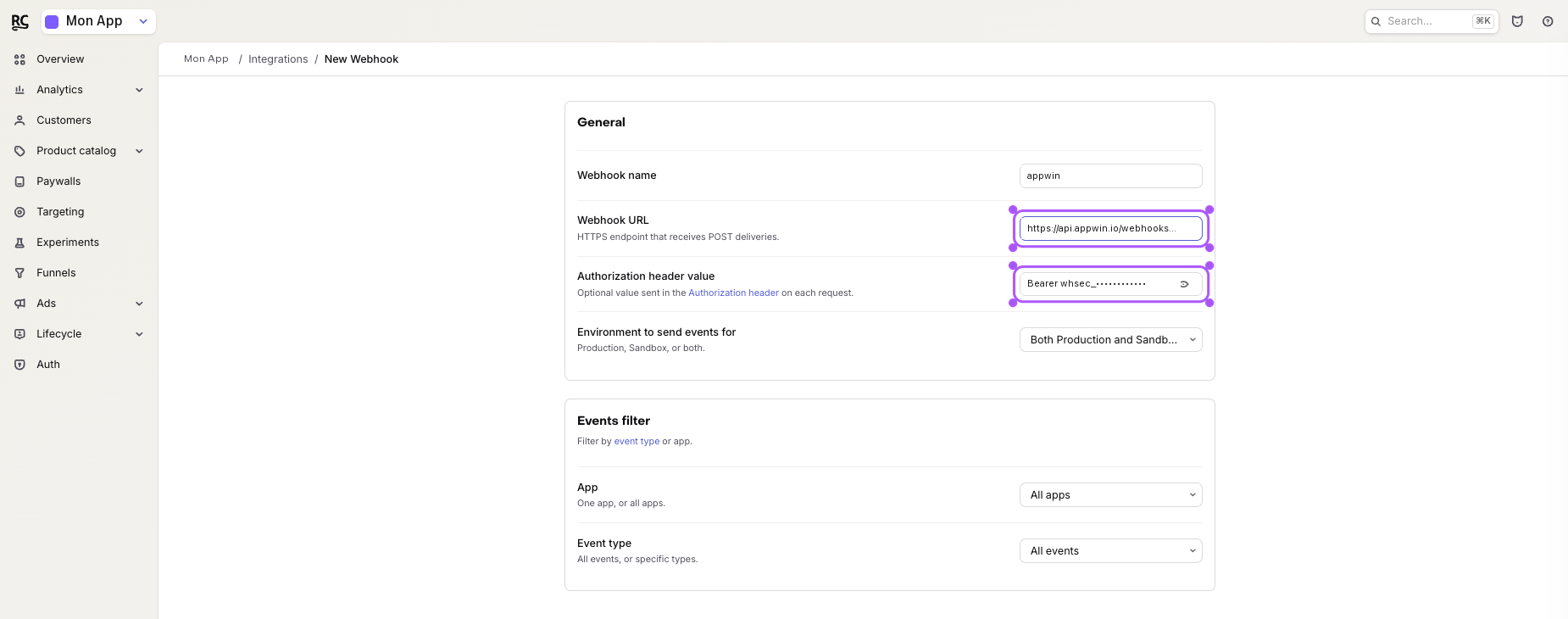

   Paste the URL and secret

   Add a webhook. In Appwin, copy Webhook URL (shape https://ingestion.appwin.io/ingest/v1/revenuecat/<id>) and paste it into the Webhook URL field in RevenueCat.

   Choose Authorization header auth and paste the secret as-is (whsec_ prefix included), then save in RevenueCat.



5. 5

   Confirm in Appwin

   Once the webhook is saved in RevenueCat, click Done in RevenueCat on the Appwin card. We cannot verify delivery before the first purchase: that button only records that you finished the setup.

2. Import all your RC history

Without a scheduled export, Finance only sees events received after the webhook was activated. The S3 drop fills in the past.

Before pasting fields into RevenueCat, create the drop on the RevenueCat card → Import all your RC history → Create my S3 drop. Appwin shows Endpoint, Bucket, Access Key, Secret Key, and the bucket folder (this project's id).

1. 1

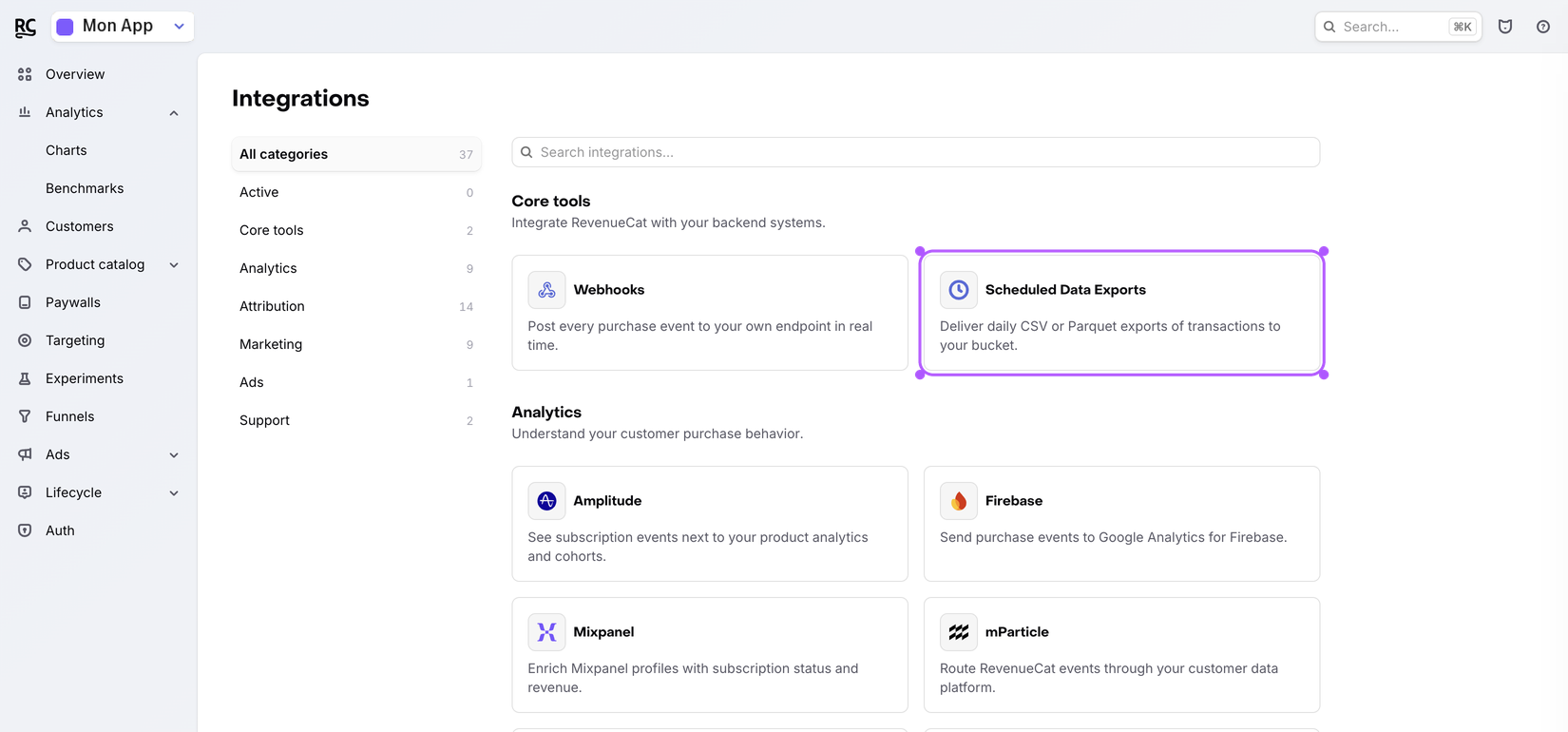

   Open Scheduled Data Exports

   Open RevenueCat, select your project, then Integrations and the Scheduled Data Exports card.



2. 2

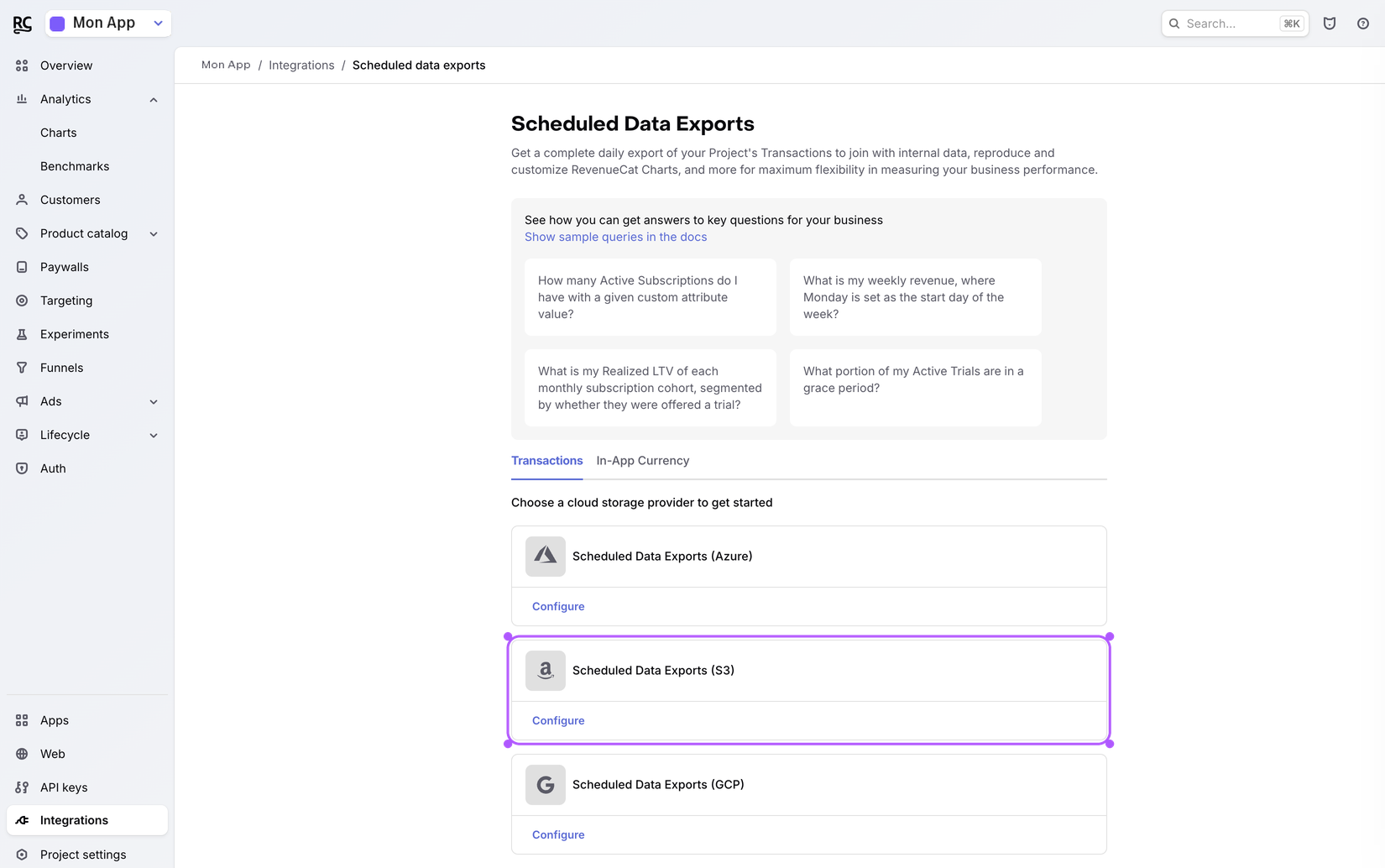

   Choose S3

   Under Choose a cloud storage provider, click Configure on Scheduled Data Exports (S3).



3. 3

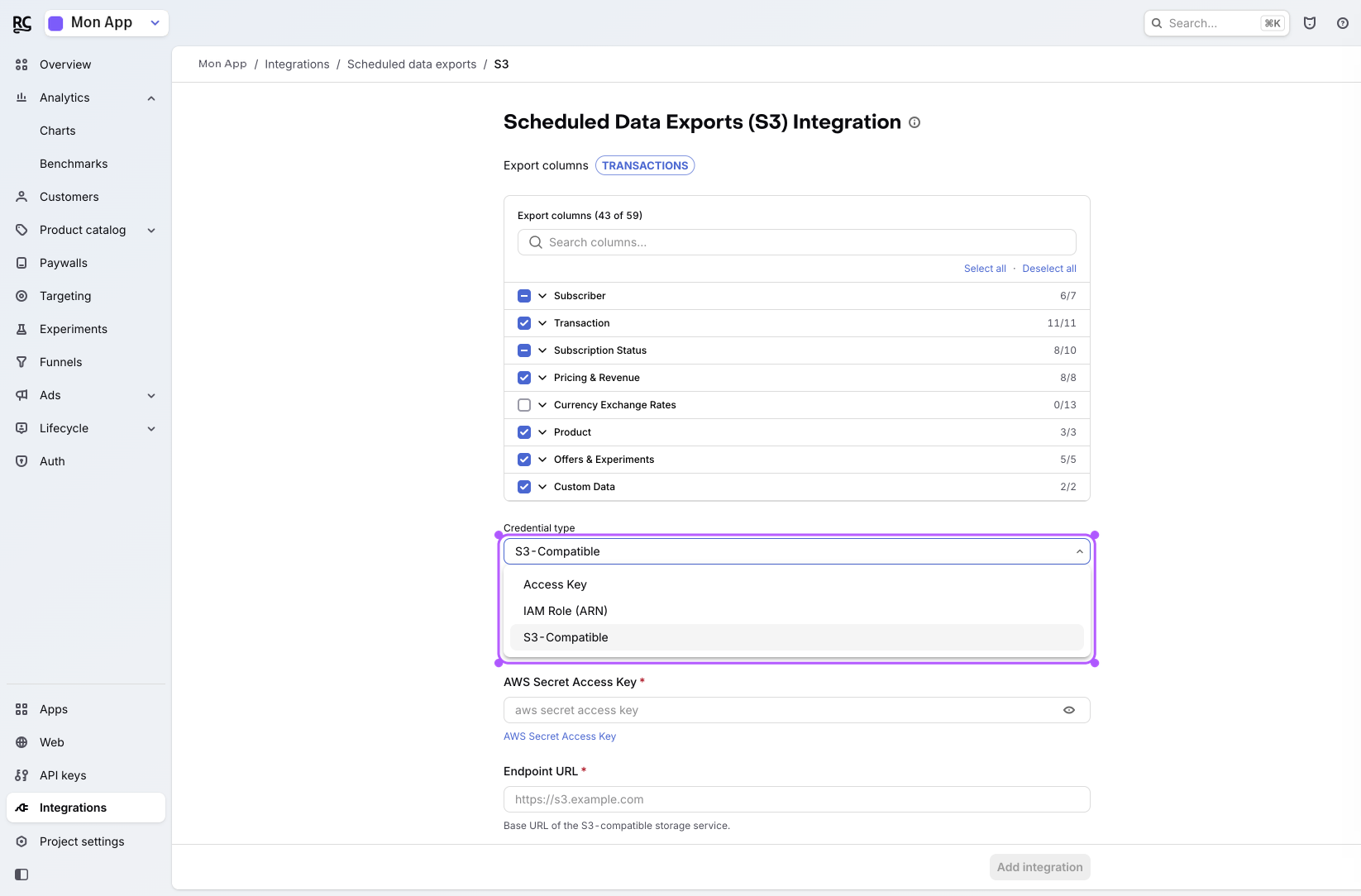

   Credential type → S3-Compatible

   In the form, Credential type → S3-Compatible (not classic Amazon Access Key: the Appwin drop is S3-compatible storage).



4. 4

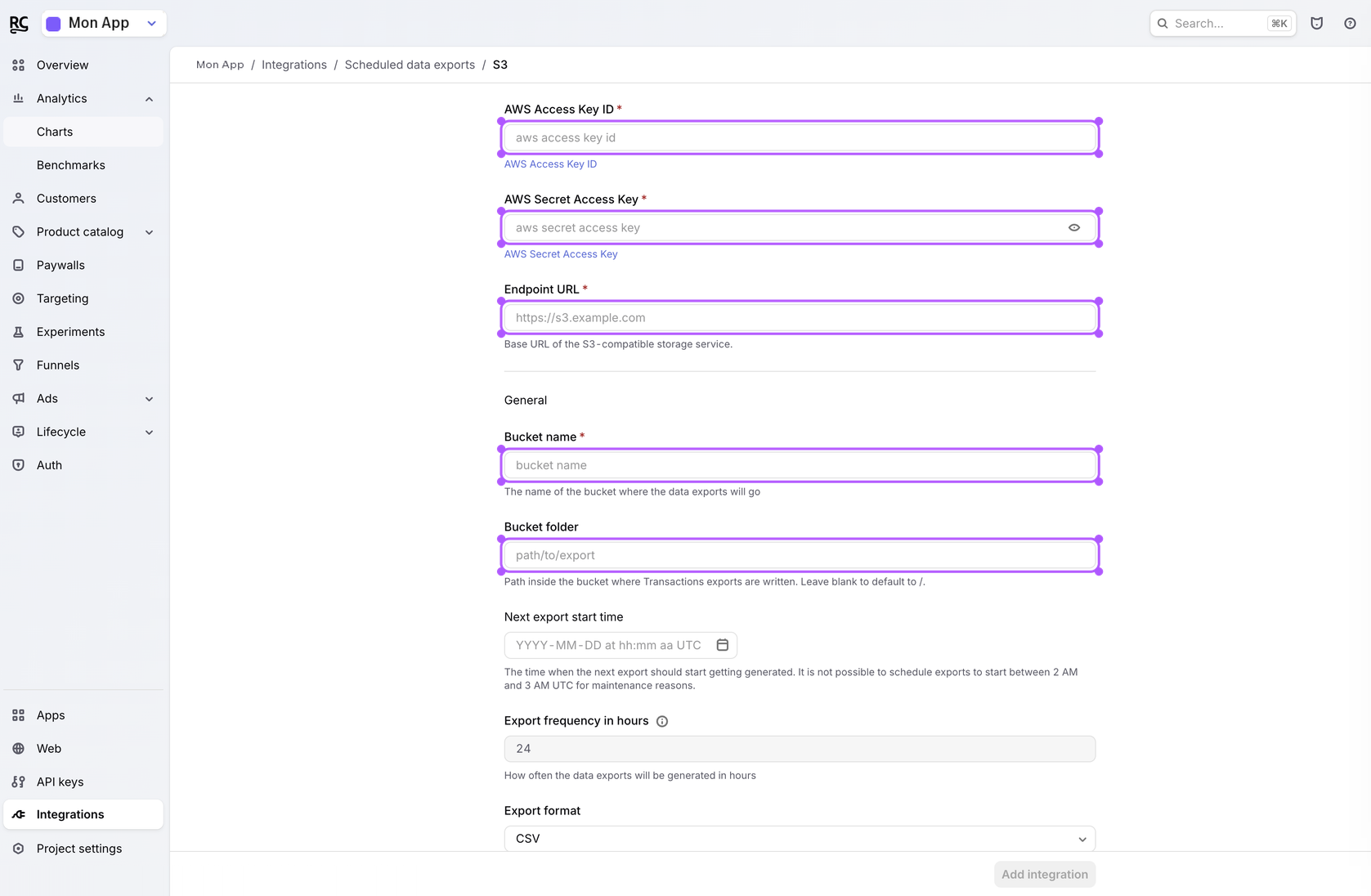

   Paste the Appwin credentials

   Fill with the values from the Appwin card:

   RevenueCat field	Appwin value
   AWS Access Key ID	AWS Access Key ID
   AWS Secret Access Key	AWS Secret Access Key
   Endpoint URL	Endpoint URL
   Bucket name	Bucket name
   Bucket folder	Bucket folder (this project) - the project id, not an invented path



5. 5

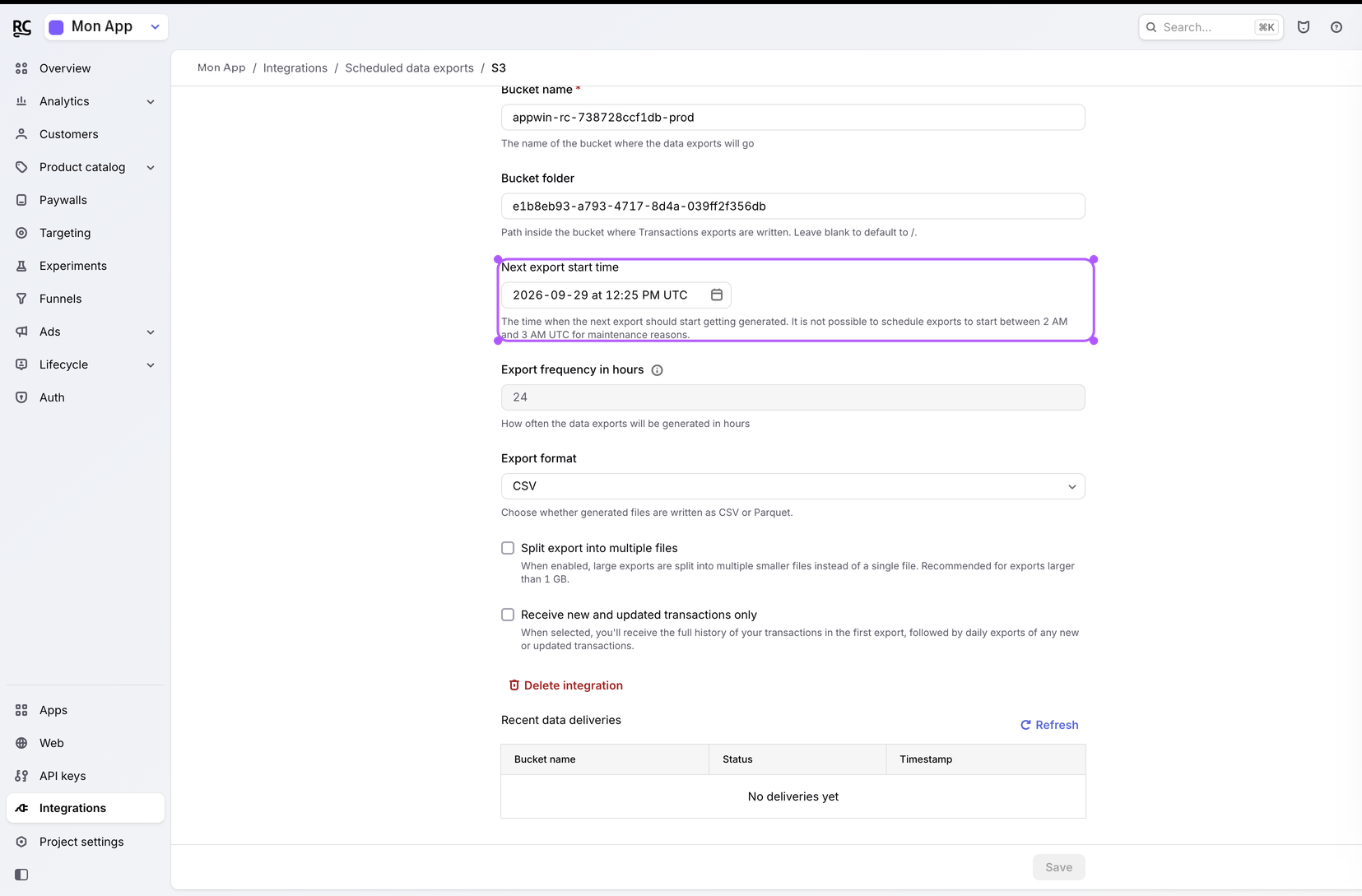

   Next export start time

   Set Next export start time to now (or soon). Watch AM/PM: the picker is 12-hour UTC. A PM time entered as AM delays the first export by 12 hours.



6. 6

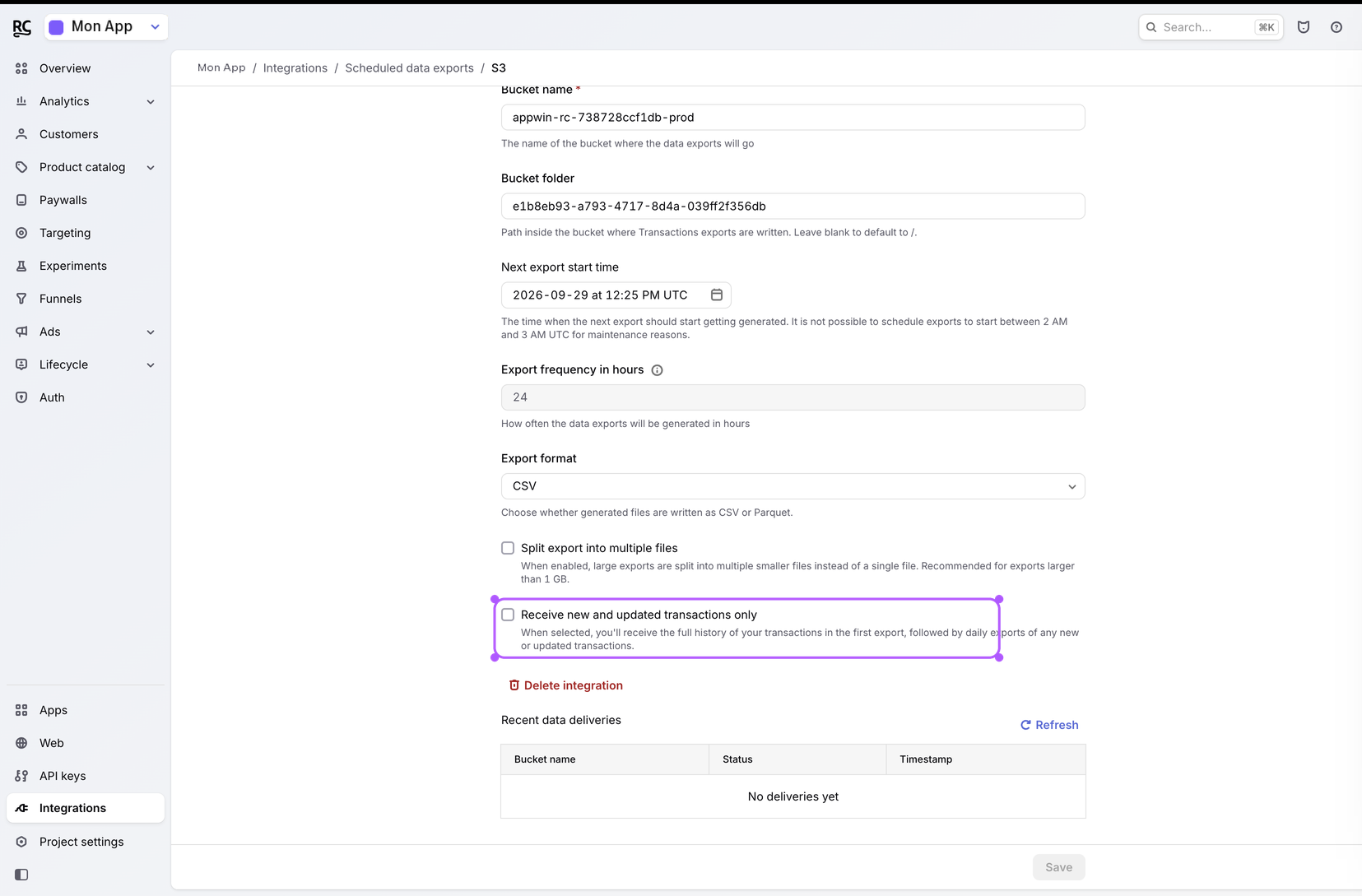

   Uncheck incremental-only

   Uncheck Receive new and updated transactions only. If it stays on, RevenueCat only sends new events and you get no history.



7. 7

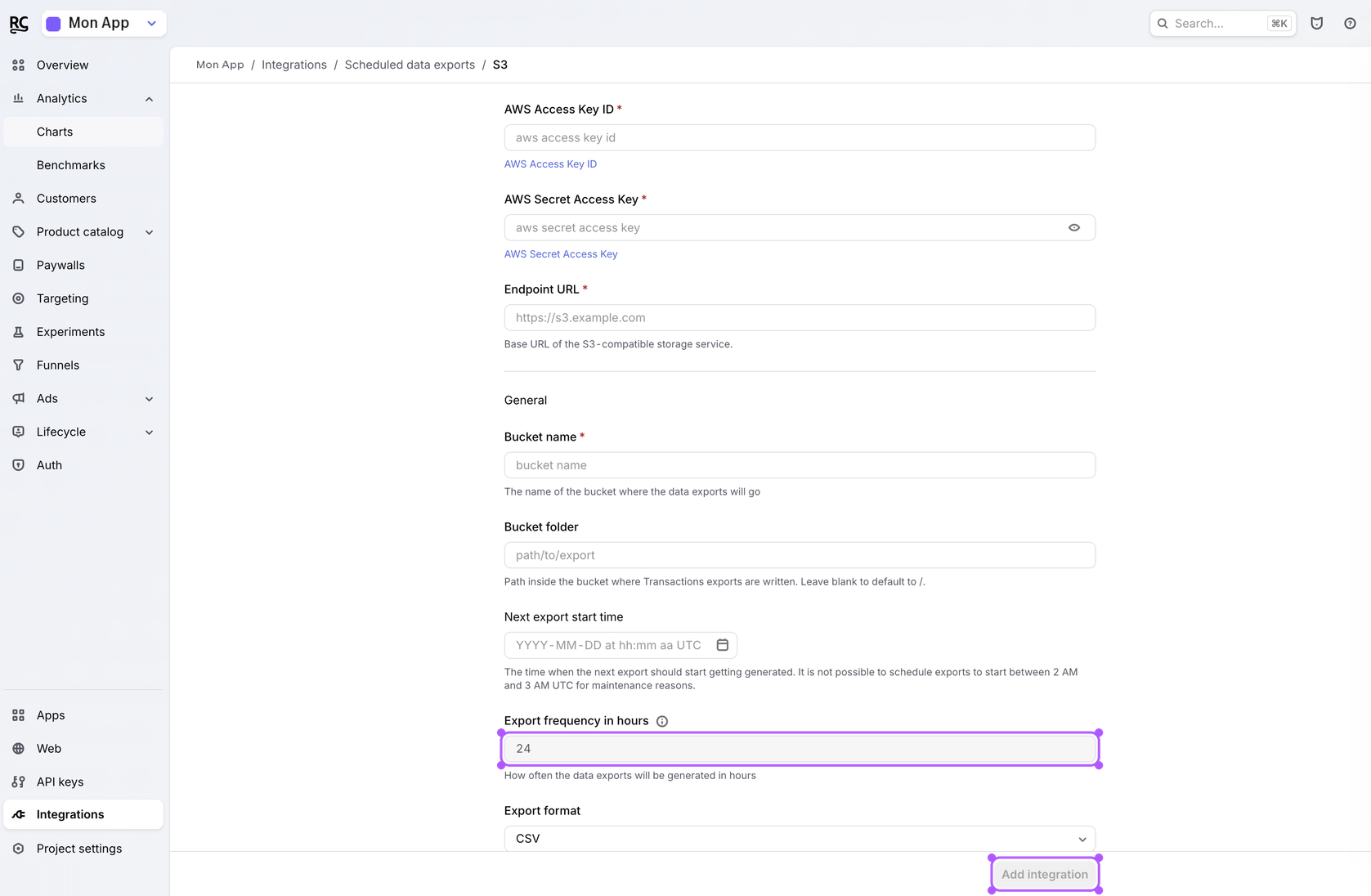

   Enable the export

   Leave frequency at 24 hours, format CSV, then Add integration.



3. Notifications: subscription_status

Appwin keeps each user's subscription status up to date, even when they never reopen the app. A subscription that expires, gets cancelled or fails to renew changes the user's audience in Notifications and can start an automation.

What keeps it up to date

Link the RevenueCat subscriber to the Appwin user

Call identify() with the same user id you give RevenueCat with logIn(). Appwin matches RevenueCat's app_user_id (and its aliases) against that id.

_ = try await Purchases.shared.logIn(user.id)
try await AppwinCore.identify(externalId: user.id)

Users without an account

If your app sells subscriptions to anonymous users (no logIn(), RevenueCat id starting with $RCAnonymousID:), there is no shared id. Store the Appwin device id as the RevenueCat subscriber attribute appwin_device_id instead:

if let id = AppwinCore.deviceId {
  Purchases.shared.attribution.setAttributes(["appwin_device_id": id])
}

What you can target

These properties come from the store: once RevenueCat has filled them for a user, values the app sends for the same keys are ignored.

Automation triggers

With the webhook connected, status changes start automations: Trial started, Subscription started, Trial converted, Subscription renewed, Subscription cancelled, Billing issue, Subscription expired. They can also end a journey early, for example to leave a win-back sequence on Subscription started.

Each trigger reaches every device of the user, as if the app had reported the event.

Existing subscribers

The webhook only sees what happens from now on. The S3 export sets the status of your existing subscribers on its first drop, then refreshes it every day. It does not start automations: it records where people stand, it does not replay their history.

What it unlocks

The Finance metrics fed by RevenueCat:

Each shows as a single value or as a time series, over the periods the product offers (7 days to 1 year, MTD, QTD, YTD, previous month/quarter/year).

Freshness

Dashboards may still cache an already-computed aggregation for a few minutes: refreshing a page does not necessarily recompute everything.

Troubleshooting
